After a powerful thunderstorm passes, the damage it leaves behind can tell two very different stories. In one area, a large swath of trees may be flattened in the same direction, while nearby a building like a granary may be torn apart and scattered with no clear pattern.
These contrasting damage patterns raise an important question for investigators: what kind of wind event actually caused the destruction? The answer depends on how the wind force was applied and the structure of the airflow during the storm.
A tornado creates a rotating, converging wind field that pulls air inward and spins it violently, scattering debris in unpredictable directions. In contrast, straight-line winds such as derechos or downbursts push air outward in a single direction, producing a uniform horizontal force that flattens everything along its path.
1. The Main Difference You Can See
The most immediate differentiator between a tornado and a straight line wind event is observed in the rotational axis of the air parcel itself.
The Rotational Signature of a Tornado
The presence of a vorticity field distinguishes the tornado’s damage mechanics from all other wind phenomena.
- A tornado subjects structures to wind vectors that change direction rapidly as the vortex translates. An object on the ground experiences flow from the east as the leading edge approaches, then a sudden shift to the west as the vortex passes, and finally a pull from the north as the circulation closes in.
- This rotational loading creates torsional stress. A structure does not simply fail from pressure on one wall; it experiences twisting forces that can unscrew anchor bolts from foundations or rotate an entire house slab.
- Debris in a tornadic event follows convergent paths. A wooden plank may be carried into the circulation, lifted vertically, and then driven point-first into a tree trunk or the side of a silo, indicating a trajectory that involves both horizontal translation and vertical lift.
The Uniform Push of Outflow Winds
Straight line wind events, including downbursts and derechos, produce damage that indicates a singular, relentless application of force from one quadrant.
- The damage vector remains consistent across the affected swath. A grove of trees will show trunks snapped at the same height and all crowns deposited on the downwind side of their stumps.
- Structures in these events fail due to unidirectional pressure differentials. The windward wall bears the full brunt of the dynamic pressure, often collapsing inward, while the leeward wall may experience explosive failure as internal pressure increases.
- A straight line event lacks the suction debris loop present in tornadoes. While debris can become airborne, it generally follows ballistic trajectories downwind rather than entering a closed circulation that can transport it upwind or deposit it in locations perpendicular to the storm track.
2. How the Damage Looks in Your Yard
The spatial arrangement of debris and the failure modes of affected objects provide critical forensic evidence for post-storm analysis. A site inspection reveals distinct patterns that differentiate the convergent forces of a tornado from the unidirectional load of a straight line event.
A surveyor examines not only the direction of fall but also the geometric relationships between damaged objects. The presence of crossed vectors, anomalous debris deposition, and the specific failure points on vegetation all contribute to a conclusive determination of the wind field characteristics.
The Chaotic Disarray of Tornadic Debris
A tornado leaves a signature of complexity and crossed vectors across the terrain.
- Trees in a tornado path do not simply fall. They may snap at the base, twist apart along the trunk, or remain standing with all branches stripped from the crown. The remaining trunks often exhibit a spiral grain fracture pattern.
- Debris fields show material transport that defies the storm track direction. A piece of roofing from the eastern edge of the damage path can be discovered to the west of its origin, having completed one or more full rotations within the vortex before deposition.
- Granular materials such as grain or soil exhibit scouring in some areas and deep deposition in others, indicating the variable pressure zones within the circulation. The tornado can lift material from the ground surface in one location and deposit it in a distinct plume hundreds of meters away.
The Uniform Orientation of Outflow Damage
Straight line winds produce a damage pattern characterized by its uniformity and directional consistency.
- Vegetation responds to outflow winds with predictable failure modes. Trees snap at a consistent height above grade, typically where the bending moment exceeds the fiber strength of the wood. All crowns lie parallel to one another, pointing away from the wind source.
- Structural debris in a straight line event follows ballistic trajectories. A sheet of metal roofing removed from a barn will travel downwind and come to rest along the same azimuth as the wind vector, often folded or wrapped around downwind obstacles.
- The damage swath exhibits sharp boundaries in many cases. A downburst can flatten crops in a circular or star-shaped pattern, with a sharp boundary where surrounding vegetation remains untouched.
3. Where the Wind Comes From
Tornadoes and straight-line winds form through fundamentally different atmospheric processes. Tornadoes form from organized rotation in thunderstorms, while straight-line winds come from precipitation loading and evaporative cooling, leading to different storm scales.
Within a convective storm, both updrafts and downdrafts develop as part of its life cycle.The interaction of vertical motions determines whether a storm produces a rotating vortex or a broad outflow, with wind shear and instability supporting tornado formation.
Tornadogenesis Within the Supercell
The supercell thunderstorm provides the necessary environment for tornado formation through its persistent, rotating updraft known as the mesocyclone.
- A supercell maintains a separated updraft and downdraft, allowing the rotation to organize and intensify over time. The updraft tilts horizontal vorticity into the vertical, creating a broad circulation that can contract and strengthen.
- Tornadogenesis occurs when this mid-level rotation tightens and extends toward the ground, often in conjunction with the rear flank downdraft. The descending air wraps around the circulation and can tighten the rotation further through conservation of angular momentum.
- The tornado itself represents the final stage of this process, a concentrated vortex that establishes a connection between the cloud base and the surface. Its energy derives from the continued stretching of vorticity within the parent updraft.
The Formation of Straight Line Outflows
Straight line winds originate from the simple but powerful process of precipitation dragging air downward and spreading it laterally upon ground impact.
- Rain and hail within a thunderstorm exert a drag force on the surrounding air, pulling it downward. This descending air also cools through the evaporation of precipitation, increasing its density and accelerating its descent.
- Upon reaching the surface, this cold dense air cannot penetrate the ground. It spreads horizontally outward like a fluid poured onto a flat surface, creating a gust front that can precede the precipitation by several kilometers.
- A downburst is a concentrated column of descending air, usually less than four kilometers wide. In contrast, a derecho is a fast-moving, widespread outflow event that can stretch for hundreds of kilometers and last for hours.
4. The Sound They Make
Tornadoes and straight-line winds produce distinct sounds, though exactly how these noises form is still being studied. Observers often report different auditory experiences depending on the type of wind, which can serve as early warnings.
Sound during severe storms is affected by rain, hail, and the general noise of the storm. People also perceive these sounds through the context of breaking structures and collapsing vegetation.
The Tornado Acoustic Signature
The sound produced by a tornado has been characterized through countless survivor accounts and, more recently, through infrasound monitoring equipment.
- The classic freight train comparison arises from the combination of multiple sound sources. The vortex produces a low frequency rumble as it interacts with the ground and any structures in its path, while debris impacts generate higher frequency cracking and tearing noises that blend into a continuous roar.
- Infrasound measurements confirm that tornadoes emit frequencies below the threshold of human hearing, typically between one and ten hertz. These low frequency waves can travel hundreds of kilometers and result from the oscillation of the vortex against the surrounding air mass.
- The sound often intensifies as the circulation tightens and the rotational velocity increases. Witnesses near a tornado’s center feel a pressure change in their ears, like a sudden altitude shift. They also hear the roar rise in pitch as smaller debris spins into the wind.
The Acoustic Profile of Outflow Winds
Straight line winds generate a sound profile more akin to a sustained gale or a prolonged downslope wind event, though the presence of the parent thunderstorm modifies the acoustic experience.
- The dominant sound in a straight line event is the sustained rush of air through vegetation and around structures. This produces a continuous hissing or roaring quality that rises and falls with the peak wind gusts but lacks the chaotic debris impact symphony of a tornado.
- Hail often accompanies the leading edge of a significant outflow, creating a distinct percussive layer atop the wind noise. The sound of hail striking roofs and vehicles provides a specific auditory marker for the arrival of the strongest portion of the downdraft.
- The wind itself may produce whistling or howling tones as it flows over and around building corners, eaves, and ridge lines. These tones result from the formation of vortices on the lee side of sharp edges and indicate the high velocity of the flow rather than any rotational component in the air mass.

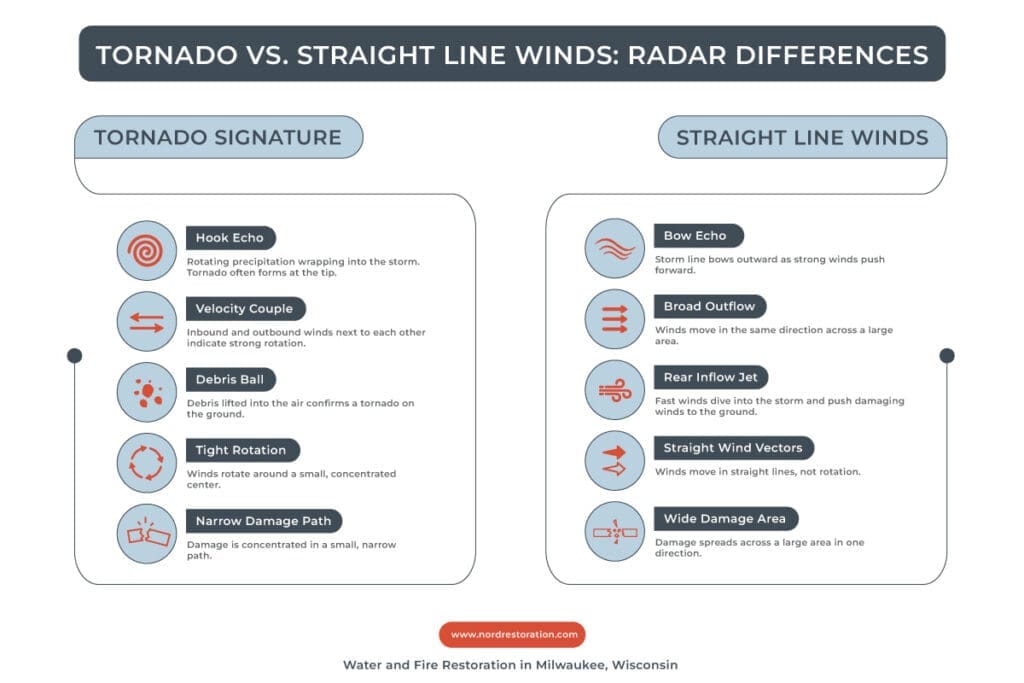

5. Radar and Warnings What the Experts Watch
Meteorologists rely on specific radar signatures to differentiate between developing tornadoes and advancing straight line wind events. The WSR-88D Doppler radar network provides the primary data stream for these determinations, offering both reflectivity and velocity information.
Doppler radar measures not only the intensity of precipitation but also the motion of particles toward or away from the radar site. This velocity data allows forecasters to detect rotation and divergence within storms.
The Tornado Signature on Radar
Tornadic circulation presents distinct features on both reflectivity and velocity displays that prompt the issuance of a Tornado Warning.
- The hook echo represents the most recognizable tornadic signature on reflectivity data. This appendage on the rear flank of a supercell indicates precipitation wrapping around the rotating updraft, with the tornado typically located at the hook’s tip.
- Velocity data reveals the tornadic vortex signature, a small area of intense inbound velocities immediately adjacent to intense outbound velocities. This couplet indicates rapid rotation and, when observed at low levels, confirms the presence of a tornado on the ground.
- Debris balls appear on reflectivity as a small area of high reflectivity values within the circulation. These signatures occur when the tornado lifts debris into the air, confirming a destructive vortex at the surface and warranting a Tornado Emergency statement.
The Straight Line Signature on Radar
Damaging straight line winds produce radar signatures associated with the cold pool and the leading edge of the outflow.
- The bow echo forms when the central portion of a squall line outruns the ends, creating a curved appearance on radar. This curvature indicates strong rear inflow jetting that transports high momentum air downward and produces damaging winds at the surface.
- Velocity data in straight line events shows a broad area of outflow with uniform direction. Instead of a tight rotational couplet, forecasters look for a rear inflow notch and accelerating wind vectors behind the leading edge of the storm.
- The line echo wave pattern represents a perturbation along the leading edge of a squall line that can sometimes produce brief spin ups. While these circulations are not tornadoes in the classical supercell sense, they can produce similar damage in a narrow swath and may warrant a Tornado Warning despite their different genesis mechanism.
Is Wisconsin in Tornado Alley?
The damage left behind by severe storms tells a clear story to those who know how to read it. A twisted grain pattern in a snapped trunk signals rotation, while a uniform field of flattened corn shows the relentless push of outflow.
Wisconsin residents often wonder if their state is part of Tornado Alley, seeking reassurance through geographic labels. The state experiences about two dozen tornadoes annually, peaking in late spring and early summer when warm Gulf air collides with lingering continental cool air.
The boundaries of Tornado Alley are debated, with some extending into western Wisconsin and others limiting it to the central plains. Regardless of the label, tornadoes and damaging straight-line winds can occur wherever atmospheric conditions create instability and wind shear.
